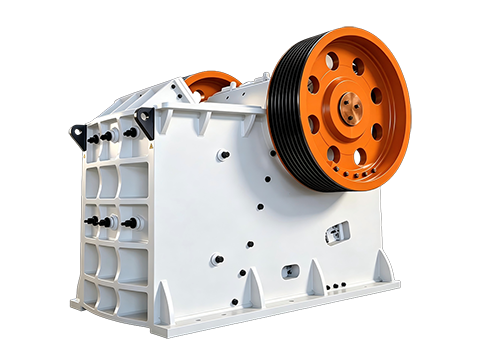

Jaw Crusher

A jaw crusher (jaw breaker) is a core primary crushing machine widely applied in mining, quarrying, aggregate production, and construction waste recycling. Adopting a fixed and movable jaw plate squeezing structure, it crushes hard bulk materials like granite, limestone, basalt, and iron ore into uniform fine and medium particles through continuous compression movement. It is specially designed for heavy-duty coarse crushing in various industrial crushing lines.
Featuring a robust structure, stable operation, and low failure rate, our jaw crusher offers high crushing efficiency with adjustable discharge sizes. It handles materials with compressive strength up to 320MPa, suitable for small to large-scale crushing projects. With easy maintenance and low operational costs, it is the ideal primary crushing equipment for stone processing and mineral production lines, delivering cost-effective and reliable performance.
Capacity

16t/h-899t/h

Max feeding size

340mm-1020mm

Raw materials

Limestone, shale, calcium carbide, carbide slag, bluestone, basalt, river pebbles, copper, ore etc.

Application

stone mining, metallurgy industry, building material, highway, railway, and chemical, etc.

Model
Opening Size(mm)
Max Feed Size(mm)
Output Adjustment Range(mm)
Capacity(t/h)
Power(kw)
Overall DimensionL×W×H  (mm)
PE400×600
400×600
350
40-90
15-60
30
1650×1588×1050
PE500×750
500×750
425
50-100
40-110
55
1956×1918×1920
PE600×900
600×900
500
60-125
90-180
75
2250×2733×2280
PE800×900
800×900
600
80-140
100-220
90
2450×2950×2490
PE750×1060
750×1060
630
60-150
110-380
110
2531×2455×2783
PE900×1060
900×1060
700
100-160
180-380
110
2900×2657×2950
PE900×1200
900×1200
750
110-165
220-450
110-132
3100×2760×3260
PE1000×1200
1000×1200
850
195-265
315-500
132-160
3480X2876×3330
PE1200×1500
1200×1500
1020
150-300
400-800
160-220
4200×3300×3500
PEX250×750
250×750
210
15-50
15-30
22-30
1400×1751×1515
PEX350×750
350×750
300
15-50
18-40
30
1485×1680×1648
PEX250×1000
250×1000
210
15-60
15-60
30
1550×1964×1380
PEX250×1200
250×1200
210
25-60
20-60
37-45
1530×1946×1380
PEX300×1300
300×1300
250
20-90
35-70
55-75
2000×2320×1730
PEX500×1500
500×1500
400
40-110
45-150
75
2850×2640×2100
